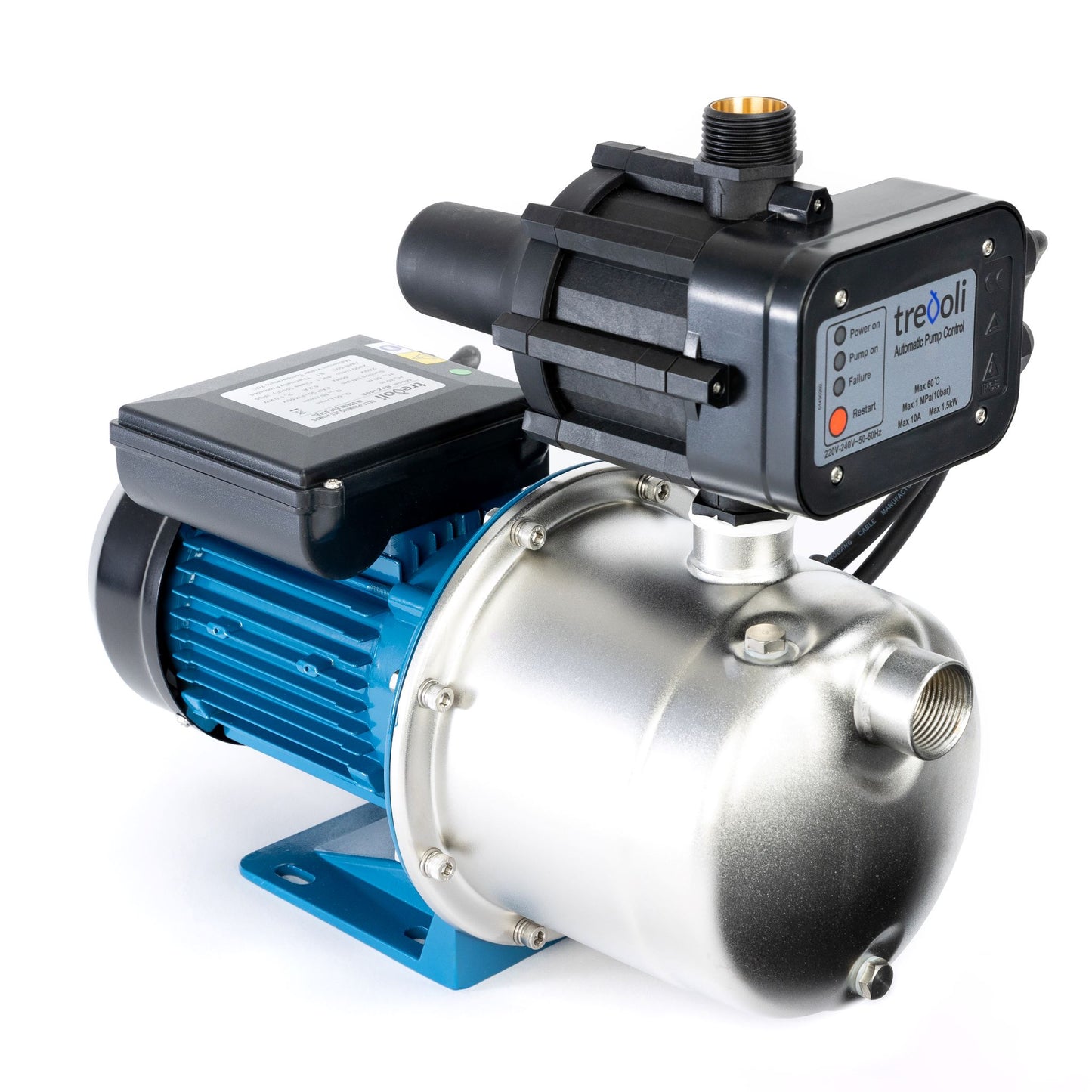

Trevoli BJZ150 1kW Stainless Steel Jet/Suction Pressure Pump (Large Home)

The 1kW Stainless Steel Jet Pressure Pump (BJZ150) is a robust and reliable solution for large homes or farm water systems. Featuring excellent self-priming capabilities and a jet and venturi design, this pump can achieve a suction lift of up to 8m. It is perfect for drawing water from rivers, dams, shallow wells, underground tanks, and more. Built for durability and ease of use, the BJZ150 ensures consistent and efficient water supply.

Key Features and Benefits

• Advanced jet and venturi design for powerful water suction up to 8m.
• Operates at a maximum working pressure of 8 bar.
• Handles liquid temperatures up to +60°C.
• Durable TEFC continuous duty motor for reliable long-term performance.
• Includes IP55 motor protection and internal overload protector for enhanced safety.

Technical Information

• Max Working Pressure: 8 bar
• Max Liquid Temperature: +60°C
• Max Suction Lift: 8m
• Ambient Temperature: ≤50°C

Motor Features

• TEFC continuous duty motor
• Class B insulation
• Internal overload protector
• IP55 protection

Construction Materials

• Pump Casing, Seal Plate, Shaft, and Impeller: 304 Stainless Steel
• Mechanical Seal: Carbon/Ceramic
• Diffuser/Venturi: PPO
• O-Rings: EPDM
• Motor Mount and Casing: Aluminium

Specifications

• Part No.: BJZ150
• Horsepower: 1.3 hp
• Power: 1.0 kW
• Inlet/Outlet: 25mm
• Phase: Single-phase
• Voltage: 220-240V
• Amps: 6.2
