10" Triple Whole House Rainwater Filtration & UV System (Small/Medium Home) (Unassembled)

10" Triple Big Blue Filter System + UV Disinfection Bundle – Specially Designed for Rainwater

This complete rainwater treatment bundle combines three-stage filtration with powerful ultraviolet disinfection, offering a safe and efficient solution for treating roof-collected tank water. Perfect for homes, baches, and rural setups, it removes sediment, organic matter, odours, and harmful microorganisms — delivering clean and safe water straight from your tap.

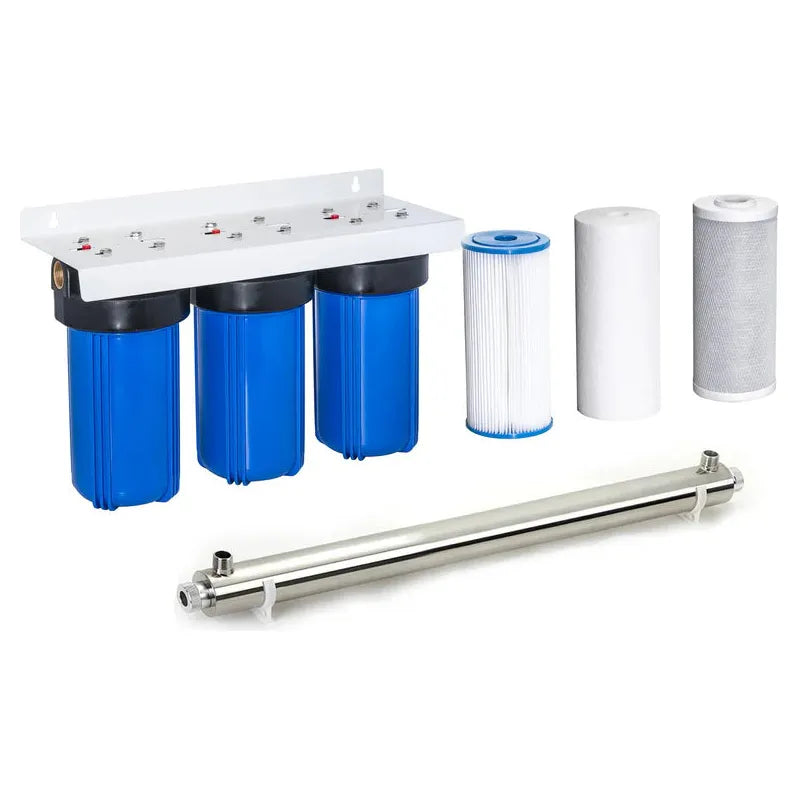

What’s Included in the Bundle

1x 10" Triple Big Blue Jumbo Heavy Duty Filter Housing
1x 10" Polypleated 20 Micron Filter Cartridge
1x 10" Polyspun 1 Micron Filter Cartridge
1x 10" Carbon Block 5 Micron Filter Cartridge
1x 55W UV Disinfection System (includes UV lamp, quartz sleeve, timer ballast, seals, and mounting clamps)
Mounting bracket, spanner wrench, and four bolts

Product Description

This system begins with a washable 20 micron pleated filter that removes larger particles such as sediment, silt, and organic debris. The second stage’s 1 micron polyspun cartridge captures fine particles and protozoa such as Giardia. The third stage includes a 5 micron carbon block filter to reduce musty odours and improve the natural taste of rainwater. Finally, water is disinfected by the 55W UV unit, which inactivates 99.9% of bacteria and viruses such as E. coli, making this system ideal for safe drinking water.

The UV system features a stainless steel chamber, audible and visual lamp alarm, and a countdown timer ballast for easy maintenance tracking.

Key Features

Three-stage filtration plus 55W UV disinfection
Removes sediment, colour, fine particles, and musty odours
1 micron filter supports reduction of protozoa like Giardia
UV kills 99.9% of bacteria and viruses without chemicals
Stainless steel UV chamber with hard glass lamp and diagnostics
Countdown timer ballast with lamp life indicator and alarm
Temperature range: 2°C to 40°C
Max working pressure: 125 psi
UV flow rating: 45 LPM (30mJ/cm²), up to 84 LPM max

Why You Should Buy

Complete rainwater treatment for safe household use
Combines filtration for clarity and taste with UV for safety
Ideal for smaller homes, baches, and rural properties
Reusable pre-filter and maintenance reminders built-in
Ready to install with all required housings and components included

FAQs

Q: What does this system remove from rainwater?
A: Sediment, silt, colour, organic matter, fine particles, odours, Giardia, and 99.9% of bacteria and viruses like E. coli.

Q: Can I drink the water after this treatment?
A: Yes – this system is designed to provide safe, potable water when properly installed and maintained.

Q: Do the filters or UV lamp need replacing?
A: The UV lamp should be replaced annually. The pleated filter is washable; the polyspun and carbon filters may last 6–12 months depending on usage.

Q: Does it need power?
A: Yes – the UV system requires power to operate the lamp and diagnostics.

Q: What comes with the package?
A: Triple housing, three filter cartridges, UV lamp system with all parts, bracket, spanner, and bolts.
