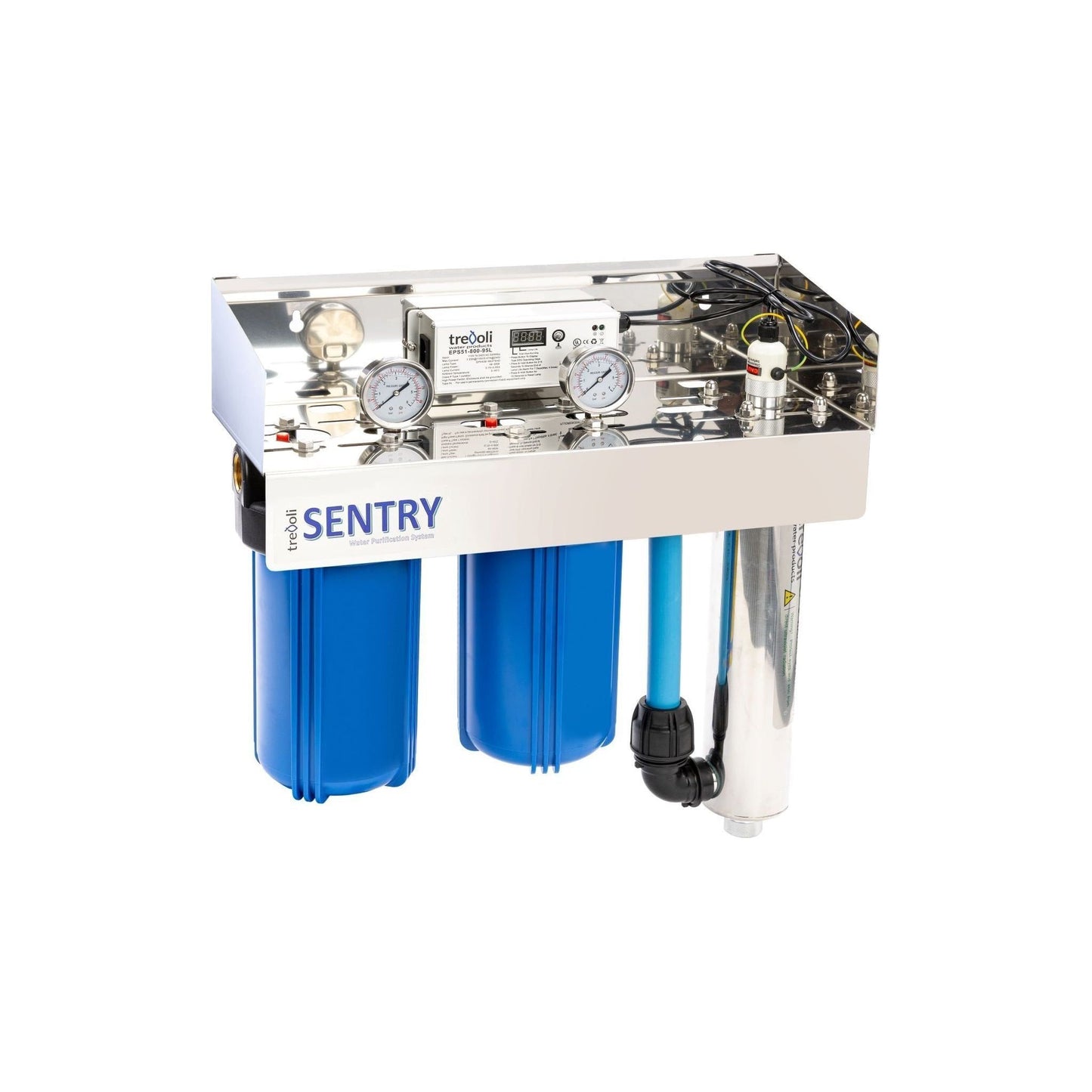

Trevoli 10" Twin Whole House Rainwater Filtration & UV System (Small/Medium Home)

The Sentry 102 is a comprehensive water filtration system designed for small to medium homes. Combining three stages of filtration with a powerful UV treatment, it effectively reduces sediment, odours, colour, and taste issues while eliminating harmful microorganisms like E. coli, Cryptosporidium, Campylobacter, and Giardia. Built with convenience in mind, this stainless steel system is pre-assembled for "plug and play" installation and can be configured for left or right-side water entry.

Key Features and Benefits

• Three-stage filtration and UV treatment for clean, safe water.
• Reduces sediment, taste, colour, and odour issues while neutralising harmful microorganisms.
• Stainless steel housing for durability and corrosion resistance.
• Pre-assembled unit for easy wall-mounted installation.
• Configurable for left or right-side water entry for flexible installation.
• Includes an automatic control ballast with a 365-day countdown timer.

Technical Information

• Council Recommended Flow Rate: 75 LPM (40 mJ/cm²)
• Nominal Flow Rate: 94 LPM (30 mJ/cm²)
• Maximum Flow Rate: 132 LPM (16 mJ/cm²)
• UV Lamp Power: 48W high-intensity lamp
• Inlet/Outlet Size: 1" (25mm)
• Temperature Range: 2–40°C
• Maximum Pressure: 125 psi
• Dimensions: 580 x 220 x 580 mm (L x W x H)

Components Included

• Filtration:
  • 2 x 10" Jumbo Big Blue water filter housings (BB10)
  • 1 x 10" Jumbo Pleated 20-micron filter
  • 1 x 10" Jumbo Polyspun 1-micron filter
• UV Treatment:
  • 48W UV lamp and quartz sleeve
  • Automatic control ballast with a 365-day countdown timer
• Accessories:
  • 2 x Pressure gauges
  • 1 x Spanner

Applications

Ideal for medium to large homes where water may be contaminated by faecal coliforms, such as:

• Roof and gutter contamination from bird and possum waste.
• Livestock runoff entering streams and shallow bores.
