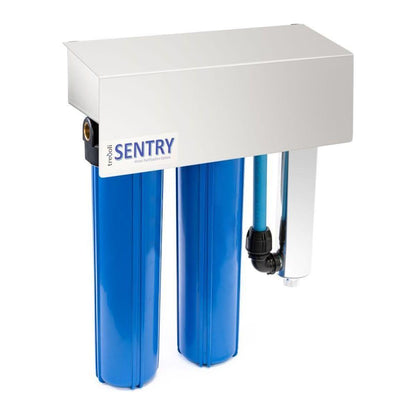

Trevoli 20" Twin Jumbo Whole House Rainwater Filtration & UV System (Medium/Large Home)

The Sentry 202 is a powerful water filtration system designed for medium to large homes. This advanced system combines three stages of filtration with UV treatment to reduce sediment, odour, colour, and taste issues while neutralising harmful microorganisms like E. coli, Cryptosporidium, Campylobacter, and Giardia. Built for convenience and durability, the stainless steel unit comes fully assembled for easy "plug and play" installation and can be configured for left or right-side water entry.

Key Features and Benefits

• Three-stage filtration and UV treatment for clean, safe water.
• Effectively reduces sediment, taste, colour, and odour while eliminating harmful microorganisms.
• Durable stainless steel housing for reliable, long-lasting performance.
• Fully assembled unit for easy wall-mounted installation.
• Configurable for left or right-side water entry to suit your setup.
• Includes an automatic control ballast with a 365-day countdown timer for UV management.

Technical Information

• Council Recommended Flow Rate: 75 LPM (40 mJ/cm²)
• Nominal Flow Rate: 94 LPM (30 mJ/cm²)
• Maximum Flow Rate: 132 LPM (16 mJ/cm²)
• UV Lamp Power: 48W high-intensity lamp
• Inlet/Outlet Size: 1" (25mm)
• Temperature Range: 2–40°C
• Maximum Pressure: 125 psi
• Dimensions: 580 x 220 x 725 mm (L x W x H)

Components Included

• Filtration:
  • 2 x 20" Jumbo Big Blue water filter housings (BB20)
  • 1 x 20" Jumbo Pleated 20-micron filter
  • 1 x 20" Jumbo Polyspun 1-micron filter
• UV Treatment:
  • 48W UV lamp and quartz sleeve
  • Automatic control ballast with a 365-day countdown timer
• Accessories:
  • 2 x Pressure gauges
  • 1 x Spanner

Applications

Perfect for medium to large homes, especially those dealing with potential water contamination from:

• Bird and possum waste on roofs and gutters.
• Livestock runoff entering streams and shallow bores.
