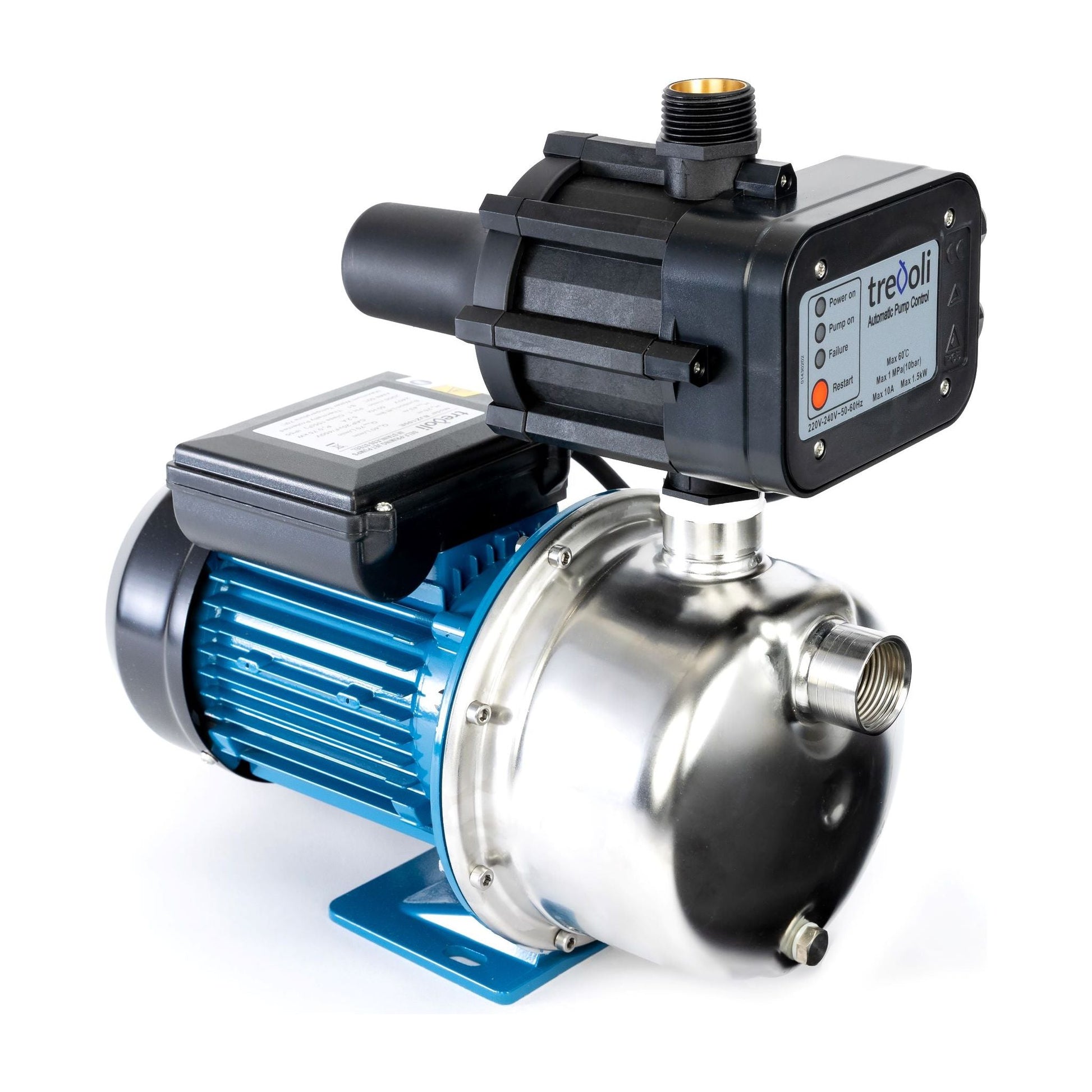

Trevoli BJZ 100 750w Stainless Steel Jet/Suction Pressure Pump (Medium/Large Home)

The 750W Stainless Steel Jet Pressure Pump (BJZ100) is built for reliability and exceptional performance, making it an excellent choice for medium to large homes or farm water systems. Its advanced jet and venturi design allows for a suction lift of up to 8m, making it suitable for drawing water from rivers, dams, shallow wells, underground tanks, and more. Designed for durability and ease of use, this pump delivers consistent water supply solutions.

Key Features and Benefits

• Powerful jet and venturi design for effective water suction up to 8m.
• Operates at a maximum working pressure of 8 bar.
• Handles liquid temperatures up to +60°C.
• Equipped with a durable TEFC continuous duty motor for reliable performance.
• Features IP55 motor protection and an internal overload protector for enhanced safety.

Technical Information

• Max Working Pressure: 8 bar
• Max Liquid Temperature: +60°C
• Max Suction Lift: 8m
• Ambient Temperature: ≤50°C

Motor Features

• TEFC continuous duty motor
• Class B insulation
• Internal overload protector
• IP55 protection

Construction Materials

• Pump Casing, Seal Plate, Shaft, and Impeller: 304 Stainless Steel
• Mechanical Seal: Carbon/Ceramic
• Diffuser/Venturi: PPO
• O-Rings: EPDM
• Motor Mount and Casing: Aluminium

Specifications

• Part No.: BJZ100
• Horsepower: 1.0 hp
• Power: 0.7 kW
• Inlet/Outlet: 25mm
• Phase: Single-phase
• Voltage: 220-240V
• Amps: 5.2
