Atlas Filtri BIG F PRO 256 – Italian-Made UV Filtration System for Rainwater and Rural Supplies (20" Big)

Engineered in Italy and crafted for performance, the BIG F PRO 256 is a powerful, all-in-one UV system that brings clean, safe, chemical-free water to your home or business. Designed with high flow capacity and European precision, it’s perfect for rural, rainwater, or bore-fed properties where health and reliability are paramount.

With its lockable weatherproof housing, dual-stage filtration, and high-output UV sterilisation, this fully pre-assembled system guarantees peace of mind and pristine water quality with minimal installation effort.

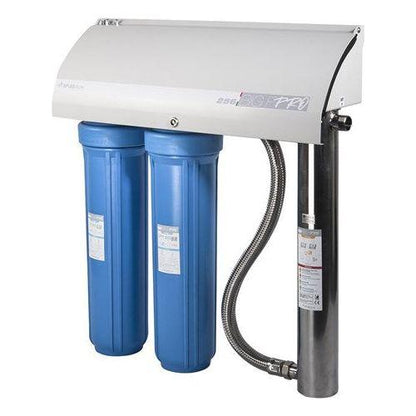

What’s Included
• Pre-assembled 2-stage 20" BIG filter system (20μm pleated + 1μm poly spun cartridges)
• 304 Stainless Steel UV chamber with digital controller (IP54 rated)
• Lockable, weather-resistant protective housing
• Digital monitor with UV lamp life counter & audible alarm
• 1” BSPF inlet and 1” BSPM outlet
• Reversible mounting for tidy pipe alignment
• 2m power cable | Compact footprint | Power-efficient 61W

Product Description

The BIG F PRO 256 is ideal for whole-house systems requiring higher flow capacity—handling up to 70 LPM at a UV dose of 30 mJ/cm². Pre-filtration ensures sediment is removed before UV exposure, enhancing disinfection by reducing light obstruction. The UV chamber then inactivates 99.9% of bacteria, protozoa (like Giardia and Cryptosporidium), and viruses.

All components are securely mounted on a bracket and housed within a lockable protective casing, providing security, weather protection, and installation flexibility in any environment.

Key Features

• Premium 20" BIG format – higher flow capacity up to 70 LPM
• Dual-stage pre-filtration: 20μm pleated + 1μm poly spun
• 304 stainless steel UV chamber for chemical-free disinfection
• Plug & Play setup – fully pre-plumbed and mounted
• Digital controller with lamp life counter and alarm
• Reversible mounting for streamlined pipework
• Lockable, weatherproof casing – protects from children, damage, and the elements
• Max Pressure: 8.3 bar | Operating Temp: 4–45°C
• Ideal for rural properties using rainwater, bore, or untreated sources

Why You Should Buy

This is Italy’s finest UV water technology—purpose-built for large homes, small businesses, or off-grid setups requiring elite-level water safety and filtration. It brings performance, protection, and peace of mind—all in one elegant and efficient package.

FAQs

Q: What water sources is this system suitable for?
A: It’s perfect for rainwater, bore water, or any untreated rural water supply needing microbiological protection.

Q: How long does the UV lamp last?
A: Approximately 9,000 hours (~1 year of continuous use). An audible alarm and countdown display alert you when it’s due for replacement.

Q: Can this system be installed outdoors?
A: Yes – the IP54-rated, lockable cover protects the unit in sheltered outdoor locations.

Q: What flow rate does it support?
A: It delivers up to 70 LPM at 30 mJ/cm², suitable for whole-home or high-demand setups.

Q: Is maintenance difficult?
A: Not at all – filters are easy to access, and the UV sleeve requires quarterly cleaning. The system is built for convenience.
