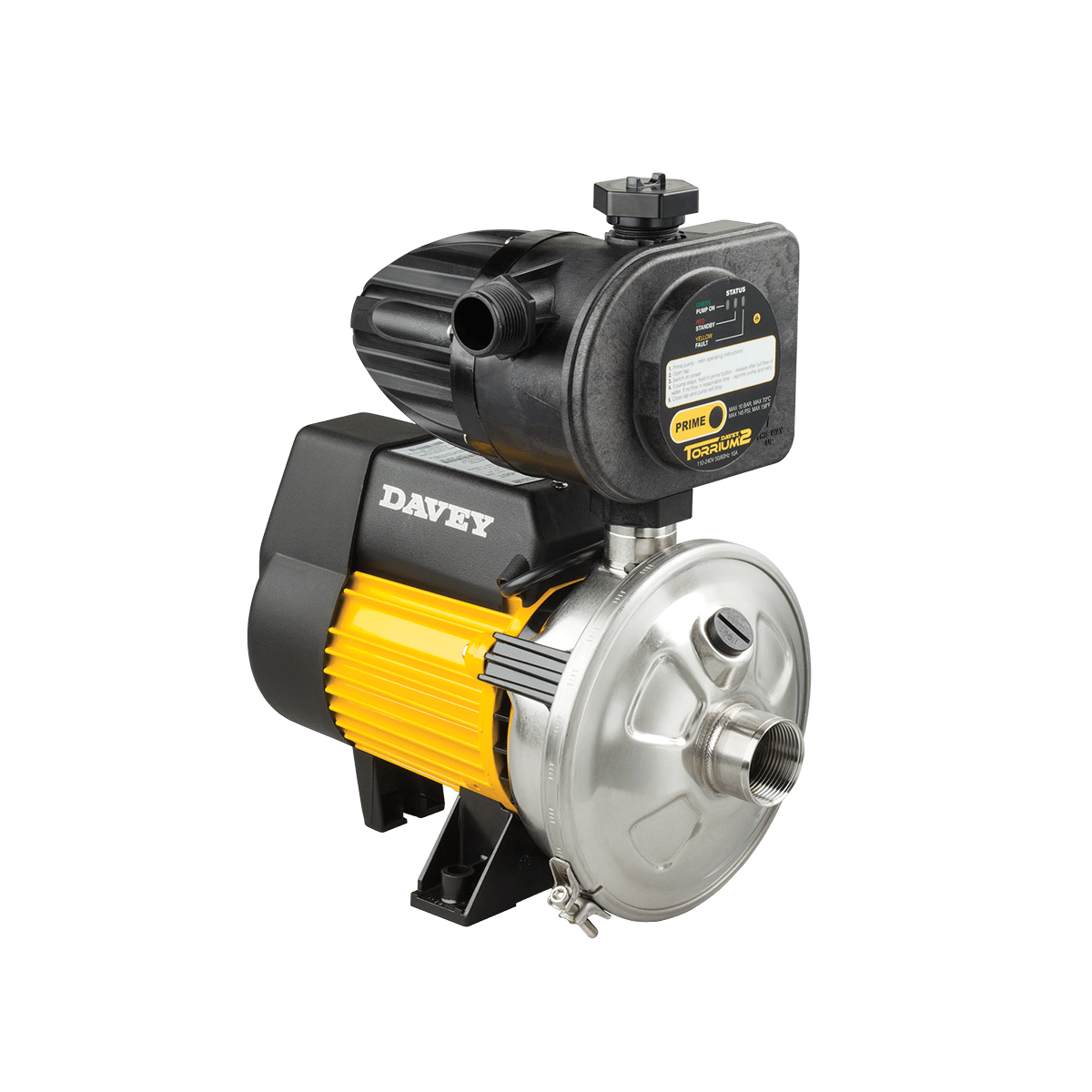

Davey HP Series Pump with Torrium2 Controller - Horizontal Pressure, Stainless Steel, Home Supply NZ

Horizontal pressure pump with Torrium2 controller for consistent flow without cycling. Three models: HP45-05T at 70 lpm, HP65-06T at 100 lpm, HP85-08T at 140 lpm, all to 330 kPa max pressure. Stainless steel casing and shaft, IP55 enclosure, standard NZ 3-pin plug included. Suits standard homes through to large, high-demand properties. AS/NZS 4020 certified, 2-year warranty.

Choosing Your Model

HP45-05T, for small to medium homes
Output power (P2): 0.55 kW | Max flow: 70 lpm | Max pressure: 330 kPa
A reliable choice for standard household supply on single-level or modest two-storey homes.

HP65-06T, for medium to large homes
Output power (P2): 0.60 kW | Max flow: 100 lpm | Max pressure: 330 kPa
Higher flow capacity for larger homes or properties with multiple simultaneous outlets.

HP85-08T, for large, high-demand homes
Output power (P2): 0.80 kW | Max flow: 140 lpm | Max pressure: 330 kPa
The highest-flow model in the range, suited to large multi-bathroom homes and high-demand supplies.

Key Specs at a Glance

• Pump type: Horizontal centrifugal with Torrium2 controller

• Inlet/outlet: 1¼" F / 1" M (all models)

• Max pressure: 330 kPa (all models)

• Max water temperature: 50°C continuous

• Casing and shaft: 304 stainless steel

• Enclosure: IP55

• Power lead: 2 metres, standard NZ 3-pin plug

• Warranty: 2 years

Why Kiwi Homeowners Choose the Davey HP Series

• 304 stainless steel casing and shaft, corrosion-resistant and built for long service life

• Torrium2 adaptive controller eliminates cycling, consistent pressure without on/off switching

• Loss of prime and over-temperature protection built into the Torrium2

• Built-in thermal overload protection with automatic reset

• Designed to start reliably under low voltage conditions

• IP55 enclosure, dust and rain resistant

• Tested to AS/NZS 4020 for use in contact with drinking water

• 2-year warranty backed by Davey's NZ dealer network

How It Works

The HP Series uses a horizontal centrifugal pump driven by a stainless steel motor and controlled by the Torrium2. The Torrium2 adapts pump output to match demand continuously, rather than switching on and off as pressure drops and recovers. This keeps pressure steady at every outlet and reduces wear compared to conventional on/off cycling.

Suitable for: household and domestic water supply, irrigation and water transfer, and washing systems.

Full Technical Specifications

What's in the Box

• 1 x Davey HP Series horizontal pressure pump with Torrium2 controller (model per selection)

• 2 metre power lead with standard NZ 3-pin plug

• Installation and warranty documentation

FAQs

How do I choose the right model?
The HP45-05T suits small to medium homes with standard simultaneous demand. The HP65-06T is the step up for larger homes with multiple bathrooms or outlets running at once. The HP85-08T suits large, high-demand homes. All three have the same maximum pressure; the difference is flow capacity.

What does the Torrium2 controller do?
It adapts pump output continuously to match demand, rather than switching on and off as pressure drops. This means consistent pressure at every outlet and less wear on the motor compared to conventional cycling operation. It also provides loss of prime and over-temperature protection.

Can I use it with rainwater or tank water?
The HP Series is rated for clean, clear water. For tank or rainwater supplies, a pre-filter upstream is recommended to protect the pump from sediment.

How loud is it?
The HP Series uses sealed, greased-for-life bearings and is designed for quiet residential operation. The Torrium2's adaptive control also reduces noise compared to pumps that cycle on and off at full speed.

Do I need a plumber to install it?
Yes, professional installation by a licensed plumber is recommended. The pump connects via standard BSP fittings.

Can I pair it with a water filter?
Yes. A whole-house filter installed upstream protects the pump from sediment and extends its service life.

What warranty applies?
2 years, backed by Davey's NZ dealer network.

Why do all three models share the same 330 kPa max pressure?
Max pressure is set by the pump's single-stage horizontal design, which is shared across the range regardless of motor size. The added power in the HP65-06T and HP85-08T goes into pushing more flow at that same pressure ceiling rather than raising the ceiling itself, which is why flow rises across the range while max pressure stays fixed.

When should I choose the HP Series over the HS Series?
The HP Series tops out at 330 kPa, suited to single or standard two-storey homes without significant elevation change or long pipe runs. The HS Series uses a 4-stage design reaching up to 700 kPa, better suited to multi-storey homes, properties on a slope, or longer distances between the pump and the furthest outlet.

Does the IP55 rating mean it can be installed outdoors uncovered?
IP55 protects against dust ingress and low-pressure water jets from any direction, which covers general rain exposure. It isn't rated for submersion or standing water, so a sheltered spot such as under an eave or in a vented enclosure is still preferable to a fully exposed outdoor location.

Is there a three-phase version of any HP model?

All three models are supplied with a 2 metre power lead and standard NZ 3-pin plug, indicating single-phase power only. There's no three-phase option within this range; if a property runs on three-phase supply exclusively, this isn't the pump series to spec.

What happens when the thermal overload trips?
The built-in thermal overload cuts power to the motor if it overheats, then resets automatically once the motor has cooled to a safe operating temperature. Repeated tripping usually points to an underlying issue, such as the pump running dry or against excessive resistance, worth checking rather than just letting it keep resetting.
