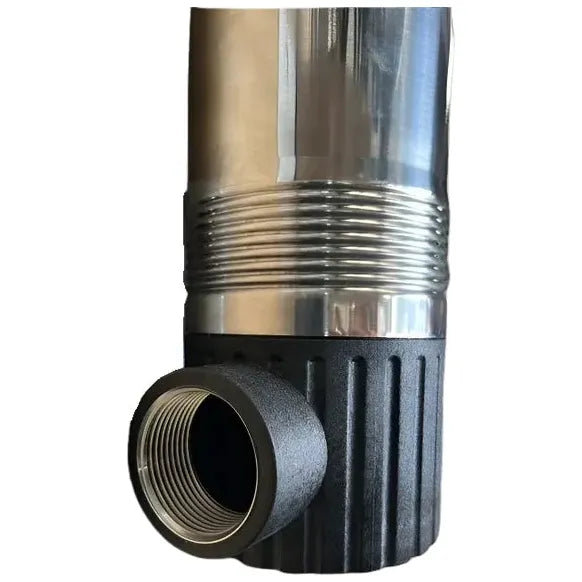

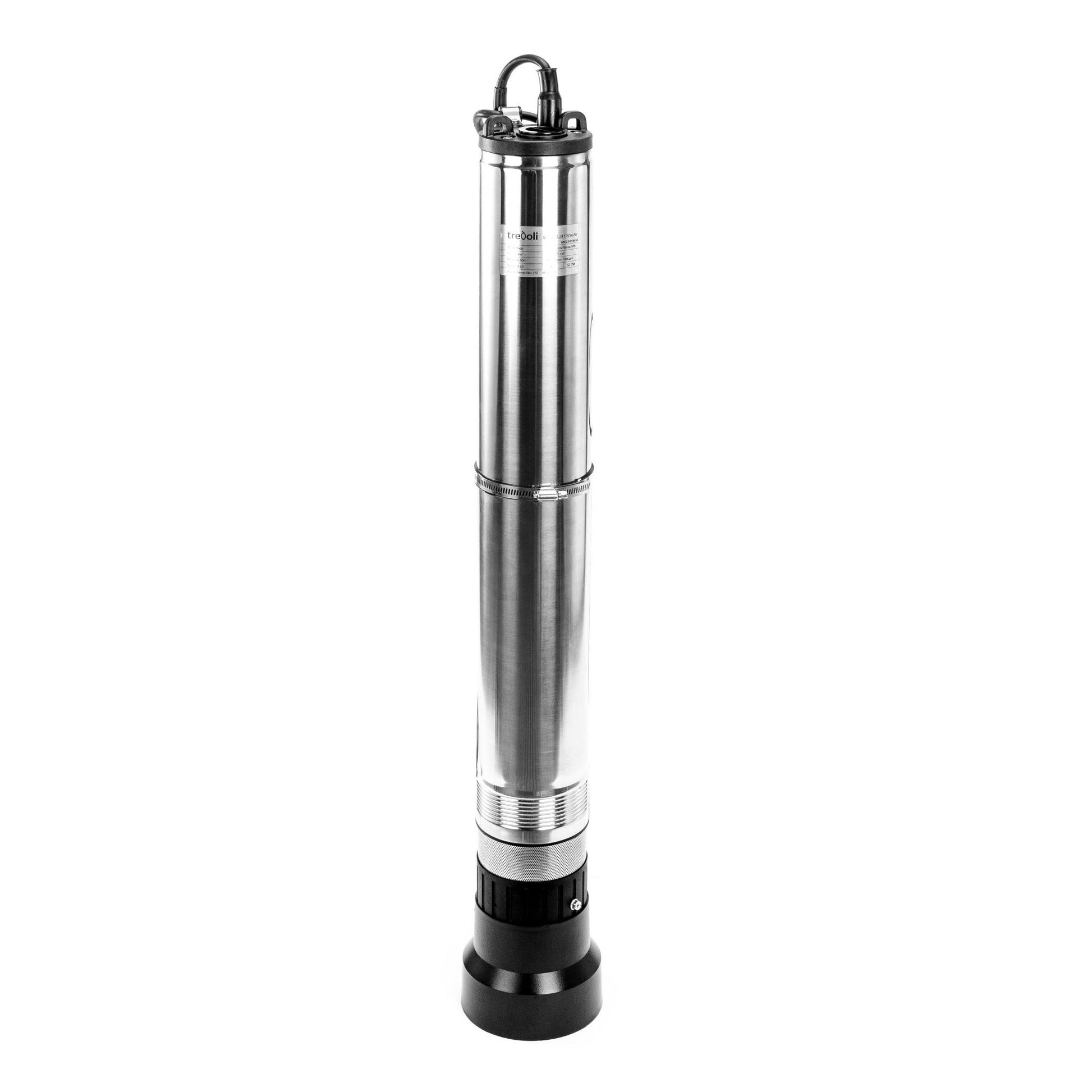

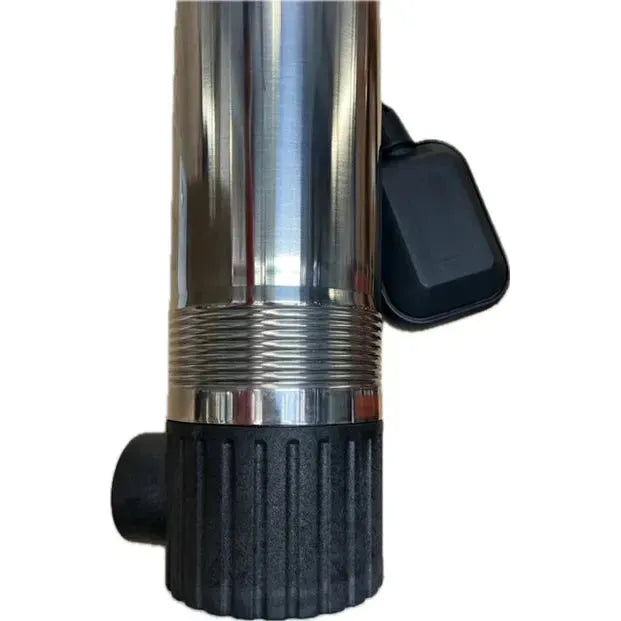

Trevoli Subtron-50 Submersible Household Pressure Pump

The Subtron-50 Submersible Household Pressure Pump is a compact and powerful solution for clean water pressure systems. Designed for ease of installation and operation, this high-head pump features automatic electronic control to start and stop the pump as needed. With built-in dry-run protection and corrosion-resistant components, it is a reliable choice for household and garden water applications.

Key Features and Benefits

• Automatic operation with built-in electronic pressure switch and flow sensor (2.2 bar start).
• Dry-run protection to prevent damage during water loss.
• Corrosion-resistant 304 stainless steel pump body for durability.
• High reliability with continuous-duty rating.
• Supplied pre-wired and ready to install with a 10m power cord.
• Integrated non-return valve for efficiency.
• Compact and lightweight design for easy handling and installation.

Technical Information

• Power: 1200W
• Max Head: 50m
• Max Flow Rate: 100 lpm
• Voltage: 240V
• Frequency: 50Hz
• Amps: 4.6
• Maximum Submergence: 7m
• Outlet: 1" / 25mm
• Insulation Class: F
• Protection Rating: IPX68

Construction Materials

• Pump Body: 304 Stainless Steel
• Impeller and Diffuser: Noryl Glass Reinforced
• Mechanical Seal: Carbon/Ceramic/Nitrile

Dimensions and Weight

• Net Weight: 12.0 kg
• Dimensions: 900H x 125W (mm)
• Power Cable Length: 15m

Applications

• Household pressure systems
• Garden and sprinkler systems
• Clear water applications requiring high pressure

Operational Features

• Fully electronic pump controller for automatic starting, stopping, and restarting after power or water loss.
• Built-in thermal overload protection to prevent overheating.
• Rated for continuous use and capable of handling water temperatures from 0 to 35°C.
