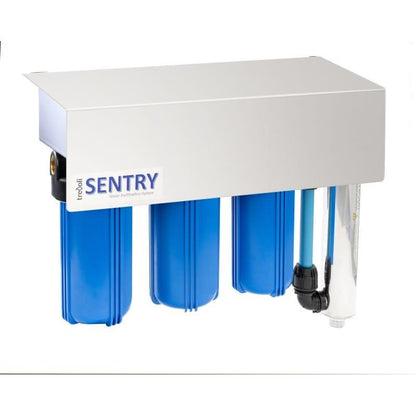

Trevoli 10" Triple Jumbo Whole House Rainwater Filtration & UV System (Small/Medium Home)

The Trevoli Sentry 103 10" Triple Jumbo Whole House Rainwater Filtration & UV System is a compact yet powerful water treatment solution for small to medium homes. Water passes through three advanced filtration stages to reduce sediment, odour, colour, and taste issues, followed by UV treatment to destroy 99.99% of harmful micro-organisms, including E. coli, Cryptosporidium, Campylobacter, and Giardia. This pre-assembled stainless steel unit offers easy "plug and play" installation and can be configured for left or right-side water entry.

Specifications

• Council Recommended Flow Rate: 75 LPM (40 mJ/cm²)
• Nominal Flow Rate: 94 LPM (30 mJ/cm²)
• Maximum Flow Rate: 132 LPM (16 mJ/cm²)
• Inlet/Outlet Port Size: 25mm (1 Inch BSP)
• UV Lamp Power: 48W high-intensity lamp
• Temperature Range: 2–40°C
• Maximum Pressure: 125 psi
• Dimensions: 755 x 220 x 580 mm

Components

Filtration:

• 3 x 10" Jumbo Big Blue filter housings (BB10)
• 1 x 10" Jumbo Pleated 20 Micron Filter
• 1 x 10" Jumbo Polyspun 1 Micron Filter
• 1 x 10" Jumbo Carbon 5 Micron Filter

UV Treatment:

• 48W UV lamp and quartz sleeve
• Automatic control ballast with a 365-day countdown timer

Accessories:

• 3 x Pressure gauges
• 1 x Spanner

Applications

This system is ideal for small to medium homes with potential water contamination from:

• Bird and possum waste on roofs and gutters.
• Livestock runoff entering streams and shallow bores.
