10" Twin Whole House Rainwater Filtration & UV System (Small/Medium Home) (Unassembled)

10" Twin Big Blue Filter System + UV Disinfection Bundle – Specially Designed for Rainwater

This complete rainwater filtration and UV disinfection bundle is designed for homes, baches, and rural properties using roof-collected tank water. The system combines robust two-stage filtration with high-performance ultraviolet disinfection, providing clean, clear, and microbiologically safe water for your entire household.

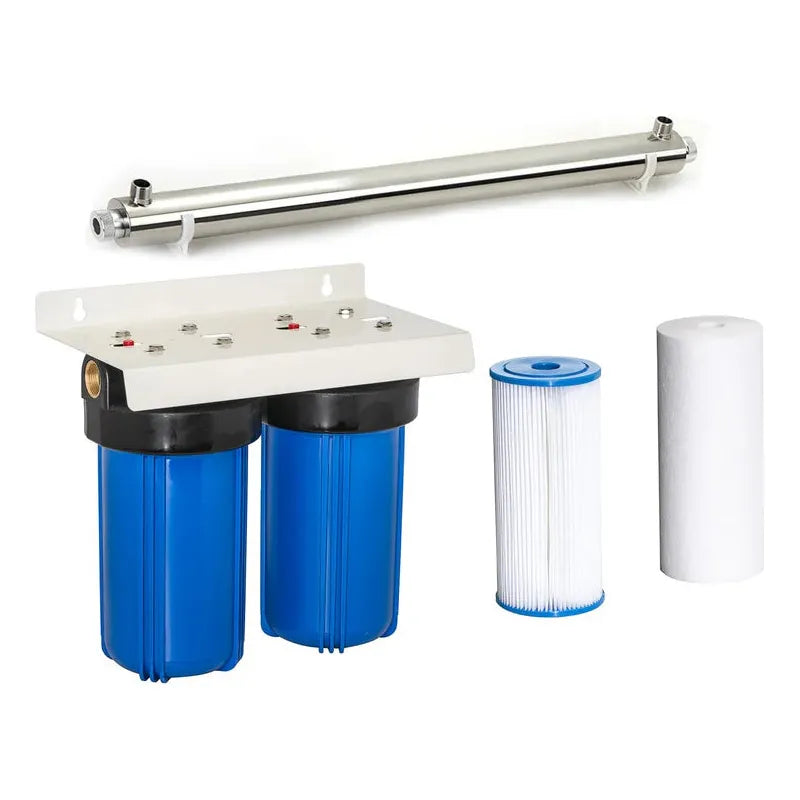

What’s Included in the Bundle

1x 10" Twin Big Blue Jumbo Heavy Duty Filter Housing
1x 10" Polypleated 20 Micron Filter Cartridge
1x 10" Polyspun 1 Micron Filter Cartridge
1x 55W UV Disinfection System (includes UV lamp, quartz sleeve, seals, timer ballast, and clamps)
Mounting bracket, spanner wrench, and four bolts

Product Description

This bundle includes a dual-stage filtration system to remove sediment, silt, colour, and fine particulates, followed by a 55-watt UV disinfection unit that eliminates 99.9% of harmful microorganisms such as E. coli and Giardia. The washable 20 micron pleated filter catches larger debris, while the 1 micron polyspun filter offers fine filtration ideal for pre-UV treatment.

The UV system features a stainless steel chamber, countdown timer ballast, visual and audible lamp failure alarm, and is suitable for flow rates up to 45 litres per minute at 30mJ/cm² (or 84 LPM at 16mJ/cm²).

Key Features

Full rainwater filtration and disinfection solution
20 micron pleated and 1 micron polyspun cartridges for sediment and fine particle removal
55W UV unit provides 99.9% disinfection without chemicals
Stainless steel UV chamber and hard glass UV lamp
Includes timer ballast with lamp life countdown and alarm indicators
Brass-threaded ports and food-grade polypropylene housings
Pressure relief valves for easy filter changes
Temperature range: 2°C to 40°C
Maximum working pressure: 125 psi
Flow capacity: 45 LPM (30mJ/cm²), up to 84 LPM max

Why You Should Buy

Provides safe, great-tasting water from tank-fed rainwater systems
Eliminates bacteria and viruses without chemicals or taste changes
Ideal for rural homes, off-grid properties, and baches
Reduces maintenance with a washable pre-filter and UV timer ballast
Easy to install with included housings, filters, and UV components

FAQs

Q: What does this bundle protect against?
A: Sediment, fine particles, Giardia, E. coli, Salmonella, and other waterborne microorganisms.

Q: How often should I replace the filters and UV lamp?
A: The pleated filter is reusable and can be washed. The polyspun filter may last 6–12 months. The UV lamp should be replaced annually.

Q: Is this suitable for drinking water?
A: Yes – it is designed to make rainwater safe for consumption when maintained correctly.

Q: Does the UV system need power?
A: Yes – it must be plugged in to power the UV lamp and diagnostics.

Q: What’s included in the box?
A: Twin filter housing, both filter cartridges, UV lamp system (with ballast, sleeve, and clamps), bracket, spanner, and bolts.
